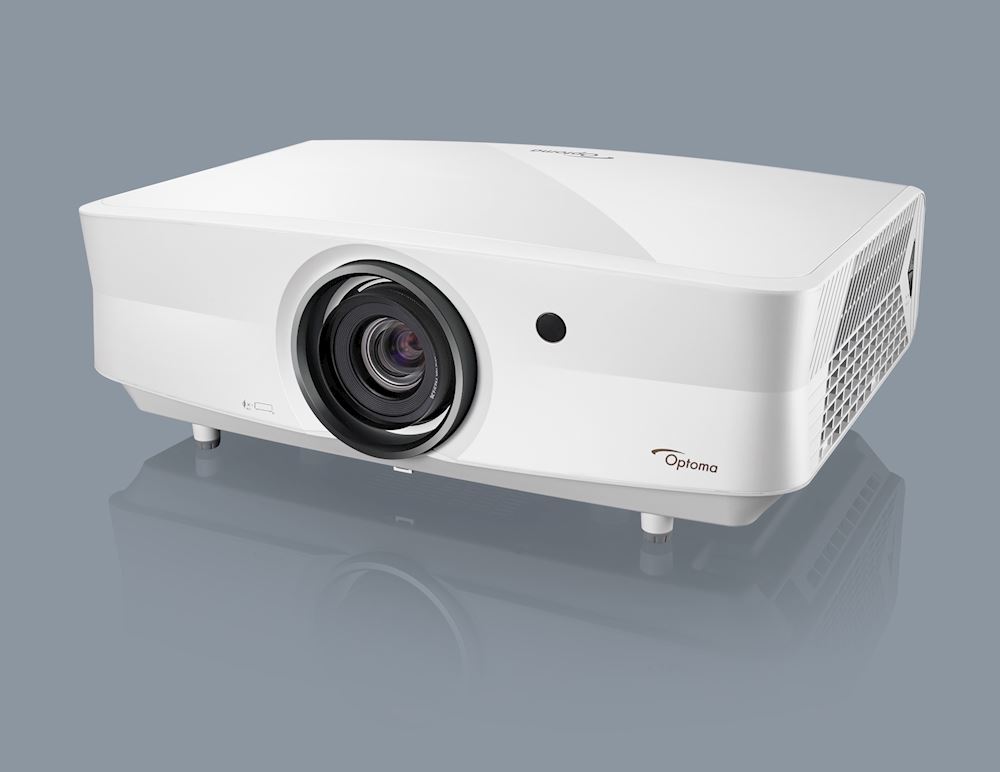

OPTOMA PROJECTOR REPAIR

We repair all Optoma projector models for various uses, such as; classroom projectors, home multimedia projectors, business and enterprise level presentation projectors and projectors for places of worship.

Repair and maintenance support for wide range of Optoma projector technologies and features

Lens types of Standard throw, Exchangeable lens, Short throw, Ultra short throw with light source of Laser, Lamp, LED, DuraCore MultiColor Laser, DuraCore Laser offering native resolutions from UHD (3840 x 2160), WUXGA (1920 x 1200), 1080p Full HD (1920 x 1080), XGA (1024 x 768), WXGA (1280 x 800), and SVGA (800 x 600)

Genuine Optoma Projector Lamps

We also stock genuine lamps for various Optoma projector models… If your projector is not listed below, do a search in the shop page or give us a call.

Optoma EH300*, Optoma EH319UST*, Optoma EH319USTi*, Optoma EH320UST*, Optoma EH320USTi*, Optoma EH330UST*, Optoma EH331*, Optoma EH334*, Optoma EH335, Optoma EH336*, Optoma EP1690*, Optoma EP1691*, Optoma EP706*, Optoma EP709*, Optoma EP7155*, Optoma EH500*, Optoma EH503*, Optoma EH503e*, Optoma EH504WIFI*, Optoma EH505e*, Optoma EH512, Optoma EH515*, Optoma EH515T*, Optoma EH515TST*, Optoma EH615T*, Optoma EH300*, Optoma EH319UST*, Optoma EH319USTi*, Optoma EH320UST*, Optoma EH320USTi*, Optoma EH330UST*, Optoma EH331*, Optoma EH334*, Optoma EH335, Optoma EH336*, Optoma EH340UST, Optoma EH345*, Optoma EH400+*, Optoma EH412, Optoma EH412ST, Optoma EH415ST*, Optoma EH416*, Optoma EH460ST, Optoma EH465, Optoma EH490*, Optoma 4K500*, Optoma 4K550, Optoma 4K550ST*, Optoma CinemaX P2, Optoma CinemaX Pro, Optoma DH1009*, Optoma DH1012*, Optoma DH351, Optoma DU380*, Optoma EH200ST

[vc_cta h2=”LED display configurator”]Optoma LED Display Configurator

Find My Optoma[/vc_cta]

[vc_tta_accordion active_section=”1″ collapsible_all=”true” title=”OPTOMA PROJECTOR ERROR CODES”][vc_tta_section title=”OPTOMA PROJECTOR HELP FILE” tab_id=”1615313050927-ae2b6730-600b”]

Q: The image on the projection screen flickers.
A: Check to make sure the refresh rate on your PC is set between 60 Hz and 75 Hz. It is also recommended that
you use the AC Adapter, if a laptop is used.
Q: The projector is running but there is no image.
A: Check to see if the lamp is properly in place.
Refer to the lamp installation procedure in your user guide and re-install the lamp.
The lamp may need to be replaced.
Q: What is the recommended resolution to set my PC?
A: SVGA (800 x 600) or XGA (1024 x 768)
Q: The image displayed is not “square?”
A: If the top part of your image is smaller than the bottom image, or if your image on the bottom is smaller than the
top, the projected image is then “keystoning.”
To correct this, use the digital keystone correction found in the menu by the following procedure,
• Press Menu
• Locate “Keystone,” most likely found under “Image I” Sub-menu
• Select/Highlight “Keystone”
Press Left and Right buttons to perform keystone correction, until the image displayed is square.
Q: Can I block any of the vents on the projector?
A: No, none of the vents on the projector can be blocked, since they are there to provide proper ventilation of the
projector. Blocking of vents can cause malfunctions to the projector. There must be a sufficient amount of
air space around the projector.
Q: Can I make the image from the projector smaller or larger?
A: Yes, the image from a projector can be made smaller or larger using the zoom dial or the projector can
physically be placed closer to the screen or farther away.
Q: Why does my image look stretched?
A: Check the aspect ratio setting for the projector.
To check aspect ratio, perform the following,
• Press Menu
• Locate “Aspect ratio”, this can usually be found in sub-menu “Image-II”
• Select/Highlight “Aspect Ratio”
• Using the Left/Right buttons, you can select the aspect ratio
When your image looks correct, you have chosen the correct aspect ratio
Q: How can I keep the projector from scanning all the sources? I want to keep it on one source only.
A: Use the Source Lock option in the on-screen menu.
Q: What does the offset percentage represent?
A: The percentage is actually a ratio: It is the ratio of the distance from the horizontal line extended from the centre
of the projector lens to the top of the image and to the height of the image. For example, if the top of the image is
78 inches higher than the centreline and the image is 60 inches high, the offset is 78/60 = 1.3/1 = 30%.
Q: Can I connect a DVD player or Cable Box to my projector?
A: Yes, you can! Most DVD Players or cable boxes have an S-Video or Composite output. You can connect via SVideo or Composite cable from the DVD player or cable box to the projector. It is recommended to connect via
scart (RGB) connection via adapter, if this is available.
Q: Can my projector display *HDTV?
A: Yes, Optoma projectors are able to accept HDTV signal (*720p/*1080i/*1080p) via the component/DVI/HDMI.
Check to make sure the projector has *HDCP capabilities on the DVI/HDMI port.
Q: Can I play video games using my projector?
A: : Yes, most video game systems either output via composite or S-video, and either type will be able to connect
to your projector. It is recommended to connect via component (RGB) connection, if this is available.
Q: Can my projector be mounted on a ceiling?
A: Yes, the projector can be installed onto a compatible ceiling mount. Once installed, you will need to make sure
the image is in its proper orientation by accessing the menu system.
For quick and easy setup, an Optoma Ceiling Mount is recommended.
To Access Menu system,
• Press Menu
• Select/Highlight “Projection” — this will most likely be found in the “”Management” Sub-Menu
Using the “Left/Right” buttons, you can select the orientation of the image, until it is correct.
Q: How do you turn “Source Lock” ON and OFF
A: “Source Lock” will detect one source automatically

• The projector must have the image from that source showing
• Press Menu
• Locate “source lock” this can usually be found in “Management” Sub menu
• Select “Source Lock” ON
Repeat to turn this option off,

if “Source lock” is ON and you would like to view a different source press the
source button twice on the proctor or remote this will then search for any other
connectivity. When you start the projector again this will still have the “Source Lock”
ON.
Q: How will an HDTV signal look on a native 576i/p projector?
A: As long as the projector indicates that it is HD compatible, the quality will be somewhere in between a true 720p
display and an SD picture, but closer to HD than SD.
Q: On the back of some projectors there is a small slot with a picture of a lock with a “K” inside. What is
this connection for?
A: This is not a connection, but rather is the slot for Kensington projector locks
Q: I have my projector hooked up to my progressive scan DVD player via component connection, but the
image has a reddish/purplish tint (or no picture). Composite and S-Video connections are fine. (Or vice
versa: S-Video connection with no image but component is fine.) What’s wrong with the projector?
A: Nothing is wrong with the projector. Some DVD players do not automatically detect what type of connection is
being used, so the connection must be manually changed for the DVD player to send out the correct type of signal.
Consult your DVD player’s manual for instructions on how to change the output signal type.
Fn F7
Q: Is there anything I can do to keep my projector in tip-top shape?
A: Clean the vents from any accumulated dust by vacuuming the unit. Be careful not to scratch the projector. Clean
the front lens with camera optic cleaning supplies. Do not use any abrasives or harsh chemicals at any time on
your projector or lens. Replace the lamp when needed or when the image is less bright than desired.
Q: Sometimes my projector’s Remote cannot operate the projector. I’ve checked the batteries and they are
new. Is there something else I can do?
A: If the projector is mounted close to a fluorescent light source, try turning the fluorescent light off and using the
remote. If the problem still exists, try controlling the projector with the projector controls.
Q: When I try to play a video file from my laptop PC, the projector does not display the actual video on the
projector screen. How can I get the projector to properly display the video files?
A: The laptop PC will need to be toggled to direct the entire video signal to the projector. The laptop screen will be
blank when this happens. Depending on the make of Lap Top PC the commands may vary.
• Press the and together, repeat until the image shows.
• The “F” Key may vary depending on the make and model of the Laptop PC.
• Please consult your Laptop PC user manual or call there customer help line.

[/vc_tta_section][vc_tta_section title=”OPTOMA PROJECTOR ERROR CODES” tab_id=”1615324836700-d3e850fc-9dbc”]
Optoma-Hd8600Power LEDLamp LED
LED Error Code Messages(Blink)(Blink)
T1 temperature over temperature30
Thermal Break40
G794 fail44
T1 fail45
Lamp error50
Ballast Over Temperature51
Ballast shot circuit in output detected52
End of lamp lift detected53
Ballast lamp did not ignite54
Lamp extinguished during normal operation55
Lamp extinguished during run-up phase56
Fan1 error (Lamp Fan)61
Fan2 error (Ballast Fan)62
Fan3 error (Burner Fan)63
Fan4 error (Power Fan)64
Lamp door open70
DMD error80
Color wheel error90
